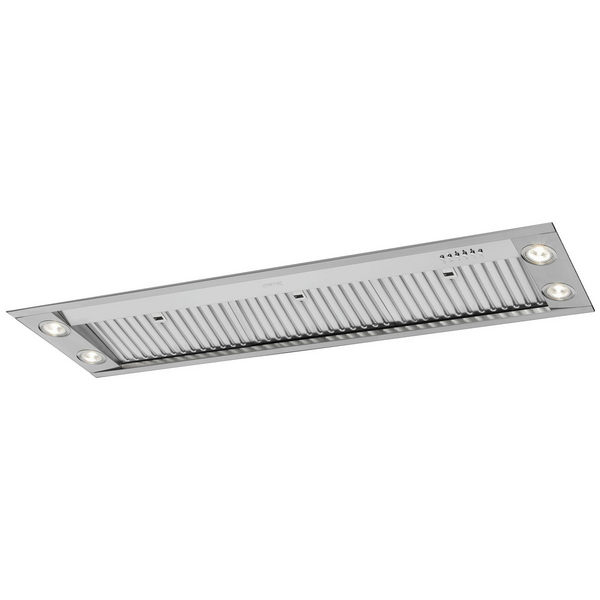

Engineered for efficiency, the hood boasts a maximum extraction capacity of 1555 m³/h on its intensive speed setting, making it ideal for clearing steam, smoke, and odors quickly during heavy-duty cooking sessions. With three standard speeds plus an intensive mode, it adapts effortlessly to your kitchen's ventilation needs. The automatic switch-off feature enhances convenience, running the hood for a preset duration after cooking to ensure a fresh kitchen environment.
Equipped with durable baffle filters, this hood captures grease effectively and features a replacement indicator to simplify maintenance. Four integrated LED lights with a warm 3000K color temperature illuminate the cooking area, combining practicality with ambiance. Despite its power, the hood maintains a relatively low noise level, reaching 46 dBA on its quietest setting, ensuring a peaceful kitchen atmosphere.
The electronic controls and white LED indicators provide an intuitive interface for selecting speed settings and managing operations. A non-return valve prevents backflow, ensuring consistent air quality.
Baffle Filters
Constructed from stainless steel, the baffle filters are designed to separate grease from cooking vapours. The grease-laden air is forced to rapidly change direction, leaving the air to escape through the ducting while the grease is trapped in the filter.
In-built LED lighting
To help improve the usability of your cooktop’s working space, the rangehood features in-built LED lighting for keeping your cooking area illuminated.
High Extraction Efficiency
Offers a powerful maximum capacity of 1555 m³/h, ideal for managing steam, smoke, and odors during intense cooking.
Intuitive Design and Control
Sleek electronic button controls with LED indicators allow effortless operation and speed adjustments.
Specifications & Manuals
| Rangehood Type | Undermount |
|---|---|
| Model Number | KDIAM120AX |
| Weight (kg) | 22.5 kg |
| Depth (mm) | 295 mm |
| Height (mm) | 320 mm |
| Width (mm) | 1200 mm |
| Power (W) | 555 W |
| Accessories included | 3 x Baffle Filters |
| Finish Colour | Stainless Steel |
| Finish Colour Description | Stainless Steel Fascia Panel. |
| Induction compatible | |
| Rangehood Model Number | KDIAM120AX |
| Installation Note | Built into an overhead Cupboard Installation. |
| Manufacturer Warranty | 5 Years |
|---|---|
| Use | Not intended or designed for commercial use. |
| Max Air Capacity | 1555 m³/h |
|---|---|
| Number of fan speeds | 4 |
| Ducting size | 150 |
| Can be recirculated | |
| Ducting location | Top |
| Recirculating Only |
| Features | Installation Type: Built into an overhead cupboard installation. Control Panel: Push Button Control panel Speeds: 3 x Speed plus 1 x Boost function. Auto Door Opening: The dishwasher door opens automatically at the end of the wash cycle. Air Movement: maximum capacity of 1555 m³/h Filter System: 3 x Stainless Steel Baffle Filters. Dishwasher Safe Filters: Yes. Lighting: 4 x LED 1-watt lighting. Exhaust Outlets: The Smeg KDIAM120AX comes with Two 150mm exhaust outlets or convert into one exhaust outlet using the 200mm conversion kit (AIRKITDIAM) Recirculation or Ducted: Yes this model can be ducted or recirculated, optional extra carbon filters (FLT6) are available for recirculation, and extra exhaust kits are also available from our website to add to your order. Air Conveyor Kit: The Smeg air conveyor kit (AIRKITDIAM) will convert from the two hood motors in a single outlet with a diameter of 200 mm. |
|---|---|
| Super fast air extraction | |
| Control type | Push buttons |
| Light type | LED |
| Motor Type | Twin Internal Motors |
| Boost function | |
| Clean filter indicator |
| Lowest Operating Noise | 46 dB |
|---|---|
| Highest Operating Noise | 74 dB |
| Type of connection | 10A plug & lead |
|---|---|
| Connection requirements | This product requires a 10amp electrical connection. For more information, please contact Winning Services on 1300 020 020 or your electrician. |
| Maximum current rating | 10 A |
| Length of cord | 1.5 m |
| Filter material | Stainless steel baffle |
|---|---|
| Number of filters | 4 |
| Dishwasher safe filters |
| Origin | Italy |
|---|
| Primary Product Category | Undermount Rangehoods |
|---|---|
| Dishwasher safe parts | |
| Filter | Yes |
| EAN | 8017709328405 |
