Accessories & Add-Ons

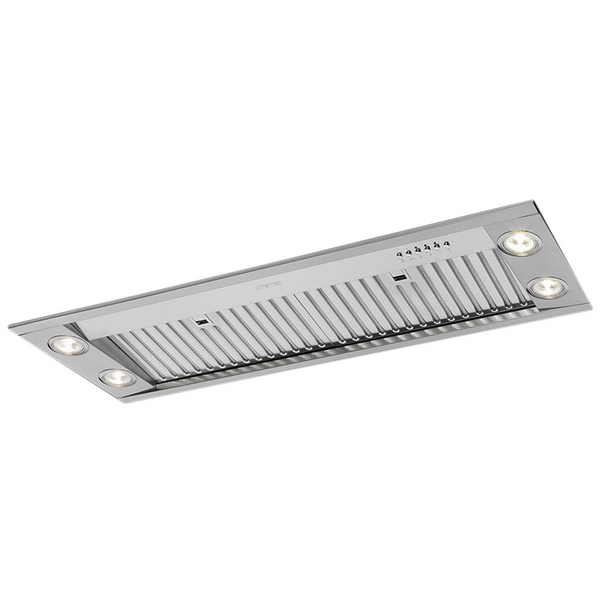

Engineered for optimal ventilation, the hood delivers a maximum extraction rate of 1555 m³/h at its intensive speed, efficiently clearing cooking vapours and odours with minimal disruption. Its four energy-efficient LED lights provide ample illumination across the cooktop, enhancing visibility and ambience. The KDIAM90AX features three standard speeds plus an intensive turbo setting for moments that demand extra suction power.
Intuitive electronic button controls and a white LED interface make operation straightforward, while the automatic switch-off function ensures energy savings and convenience. Maintenance is effortless, thanks to durable baffle anti-grease filters with an integrated replacement indicator that alerts you when cleaning is required. A quiet yet powerful 550 W motor ensures high performance without overwhelming noise, maintaining a comfortable kitchen environment.
Ideal for gas or electric cooktops, this hood is designed with thoughtful safety spacing and a 150 mm vent outlet for effective air circulation. Its premium build and discreet design make it a standout choice for homeowners who prioritise both form and function in their appliances
Seamlessly Integrated Design
The hood's fully integrated layout blends perfectly with cabinetry, maintaining a streamlined, clutter-free kitchen aesthetic without sacrificing performance. Its concealed profile offers a minimalist look while delivering the powerful functionality expected in a modern, high-performance kitchen ventilation system.
LED lighting
LED lights bring an entirely new lighting concept to rangehoods, guaranteeing glare-free cooktop illumination. LED lights also use less electricity than conventional lights and last an (appliance) lifetime.
Stainless Steel Dishwasher-Safe Filters
Smeg’s stainless steel honeycomb filters with durable latches are fully dishwasher safe for effortless cleaning. The four-ply mesh design effectively traps grease and grime while maintaining optimum airflow, combining high-performance filtration with long-lasting convenience and easy maintenance.
Powerful 4-Speed Ventilation
Engineered for premium performance, this rangehood offers three fan speeds plus an intensive mode, delivering up to 1555 m³/h of extraction. It quickly clears smoke, steam, and odours from the kitchen, ensuring a fresh, breathable environment during and after cooking.
Specifications & Manuals
| Rangehood Type | Undermount |
|---|---|
| Model Number | KDIAM90AX |
| Weight (kg) | 19.8 kg |
| Depth (mm) | 295 mm |
| Height (mm) | 315 mm |
| Width (mm) | 900 mm |
| Power (W) | 550 W |
| Accessories included | 2 x Stainless steel baffle filters. |
| Finish Colour | Stainless Steel |
| Notes | Optional extra ducting can be added to your order online when ducting externally. |
| Finish Colour Description | Brushed Stainless Steel with Satin finish |
| Induction compatible | |
| Installation Note | Built into an overhead cupboard installation. |
| Manufacturer Warranty | 2 Years |
|---|---|
| Warranty Note | A domestic warranty on all parts and labour with in-home service |
| Use | Not intended or designed for commercial use. |
| Max Air Capacity | 1555 m³/h |
|---|---|
| Number of fan speeds | 4 |
| Ducting size | 150 |
| Can be recirculated | |
| Ducting location | Top |
| Features |
|
|---|---|
| Super fast air extraction | |
| Control type | Push buttons |
| Light type | LED |
| Motor Type | Single |
| Boost function |
| Type of connection | 10A plug & lead |
|---|---|
| Maximum current rating | 10 A |
| Length of cord | 1 m |
| Automatic power off |
|---|
| Filter material | Stainless steel |
|---|---|
| Number of filters | 2 |
| Dishwasher safe filters |
| Noise when in operation - low to high | 46 - 74 |
|---|---|
| Noise when working | 46 dB |
| Origin | Italy |
|---|
| Primary Product Category | Undermount Rangehoods |
|---|---|
| Dishwasher safe parts | |
| Filter | Yes |
| EAN | 8017709217082 |
