Specifications & Manuals
| Cooktop Type | Ceramic |
|---|---|
| Rangehood Type | Cooktop with Integrated Extractor |
| Cooktop Fuel Type | Electric |
| Model Number | HOBD682R1 |
| Weight (kg) | 19 kg |
| Depth (mm) | 520 mm |
| Height (mm) | 210 mm |
| Width (mm) | 830 mm |
| Power (W) | 7545 W |
| Accessories included | Cooktop Secure Clips. |
| Cooktop Material | Ceramic Glass |
| Finish Colour | Black Glass |
| Notes | **This model requires hardwiring by a qualified electrician.**
** Optional Ducting and recirculation kits are available directly through the Suppliers Spare Parts Division** |
| Cookware compatibilty | Please note that induction cooktops are only compatible with cookware made from magnetic material. |
| Finish Colour Description | Black Ceramic Glass Finish. |
| Installation Note | Built into a kitchen benchtop flush or proud Installation |
| Number of cooktop Burners or Zones | 4 |
|---|---|
| Number of cooking zones | 4 |
| Manufacturer Warranty | 5 Years |
|---|---|
| Use | Not intended or designed for commercial use. |
| Max Air Capacity | 700 m³/h |
|---|---|
| Number of fan speeds | 8 |
| Ducting size | Custom Design |
| Can be recirculated | |
| Ducting location | Rear |
| Features | Installation: This model can be installed Flush or Proud. MultiZone: The Multizone function guarantees infinite possibilities and maximum flexibility of use. Auto Vent: The connected suitable rangehood will automatically activate based on the power settings detected by the hob. Autopot Detection: The hob detects the presence of the pots automatically and permanently, starting from a diameter of 9 cm. Controls: Multi Slider Touch Controls with 9 Cooking power levels on each zone. Fan Speeds: 8 x Fan Speeds Plus 2 x Booster Levels. MultiZone Option: Yes Melting/Low-temperature cooking function: Yes Keep Warm Automatic Function: Yes Extra Features: Protection against accidental start-up, Rapid level selection, Child Lock, Residual time indicator, End of cooking alarm, Pause option. Cooking Zones: 1st zone dimensions:23.0 x 21.0 cm, 2.10Kw/ 3.7Kw Booster Power
2nd zone dimensions:23.0 x 21.0 cm, 2.10Kw/ 3.7Kw Booster Power
3rd zone dimensions:23.0 x 21.0 cm, 2.10Kw/ 3.7Kw Booster Power
4th zone dimensions:23.0 x 21.0 cm, 2.10Kw/ 3.7Kw Booster Power
|
|---|---|
| Control type | Touch controls |
| Motor Type | Single Internal Motor |
| Outdoor | |
| Portable | |
| Timer | |
| Integrated Ventilation | |
| Cooktop Configuration | 4 Burners |
| Cut Out Depth (mm) | 482 mm |
|---|---|
| Cut Out Width (mm) | 765 mm |
| Lowest Operating Noise | 51 dB |
|---|---|
| Highest Operating Noise | 72 dB |
| Type of connection | Hardwired |
|---|---|
| Connected load | 7.54 kW |
| Connection requirements | Needs to be hardwired by a qualified electrician |
| Maximum current rating | 31.5 A |
| Length of cord | 1.2 m |
| Child lock | |
|---|---|
| Thermal overload protection | |
| Residual heat indicator | |
| Spill protection |
| Filter material | Aluminum Mesh |
|---|---|
| Number of filters | 1 |
| Origin | Italy |
|---|
| Primary Product Category | Induction Cooktops |
|---|---|
| Built In | |
| Filter | Yes |
| Multi Function | |
| EAN | 8017709298692 |
Compare to similar items

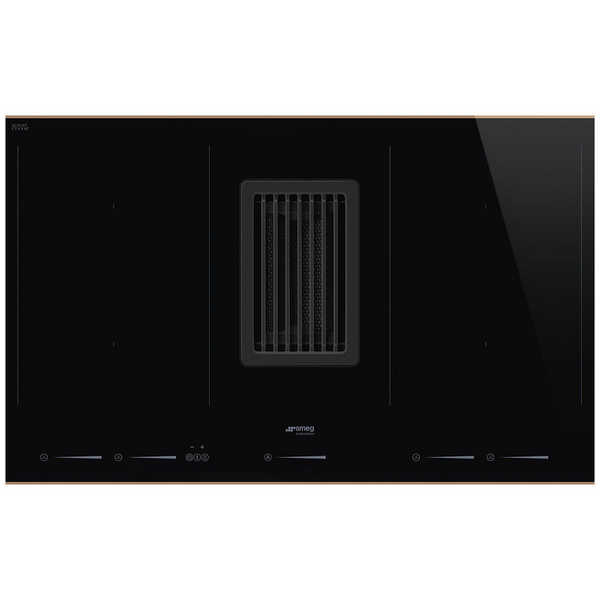

Smeg 83cm Dolce Stil Novo 4 Zone Induction Cooktop with Integrated Downdraft HOBD682R1
