What really sets it apart is the built-in downdraft ventilation system, which quietly pulls away steam and odours right from the cooktop, keeping your kitchen fresh and clear. The minimalist design fits beautifully into any modern space, while intuitive touch controls make it easy to use. It’s a perfect blend of style, precision, and convenience for anyone who loves to cook.
Fully Automatic Ventilation System Functions
Automatic sensor-controlled performance adjustment of the ventilation system.
Free Positioning of Cookware
2 flex induction cooking areas 23x20cm, linked together 23x40cm rectangular cooking areas. Free positioning of cookware inside combined cooking areas with automatic extension up to 30cm width.
Large-Scale Metal Grease Filter
Integrated activated charcoal filter easily removable from above for air recirculation system, dishwasher safe.
Control Knobs
Control knobs with illuminated ring, cooking zone and output level markings. Electronic power control in 12 output levels. User friendly control with bicoloured display (white / orange). Control of ventilation system with 3 electronically controlled power levels and 1 intensive mode.
Specifications & Manuals
| Cooktop Type | Ceramic Glass |
|---|---|
| Rangehood Type | Downdraft |

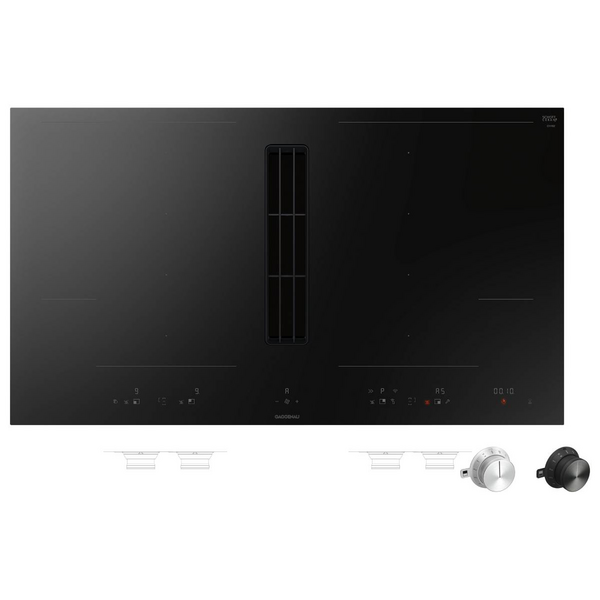

| Model Number | CV492105 |
| Depth (mm) | 521 mm |
| Height (mm) | 227 mm |
| Width (mm) | 909 mm |
| Cooktop Material | Ceramic Glass |
| Finish Colour | Black |
| Notes | Control knobs are sold separately and are required for use. |
| Number of cooktop Burners or Zones | 4 |
|---|---|
| Number of cooking zones | 4 |
| Manufacturer Warranty | 5 Years |
|---|---|
| Use | Not intended or designed for commercial use. |
| Max Air Capacity | 636 m³/h |
|---|---|
| Can be recirculated |
| Features |
|
|---|---|
| Automatic pan detection | |
| Control type | Control knobs |
| Timer | |
| Flexible zones | |
| Integrated Ventilation |
| Lowest Operating Noise | 61 dB |
|---|---|
| Highest Operating Noise | 70 dB |
| Child lock | |
|---|---|
| Auto Power Off |
| Filter material | Metallic Grease |
|---|---|
| Dishwasher safe filters |
| Connected load | 7.4 kW |
|---|---|
| Length of cord | 1.5 m |
| EAN | 4242006305765 |
|---|
Compare to similar items
Gaggenau 90cm 400 Series Cooktop with Vented Downdraft Rangehood CV492105
| Max Air Capacity | 636 m³/h |
|---|
Gaggenau 80cm 200 Series Flex Induction Cooktop with Integrated Ventilation System - Black CV282101
| Cooktop Fuel Type | Electric |
|---|---|
| Cut Out Depth (mm) | 490 mm |
| Cut Out Width (mm) | 480 mm |
| Power (W) | 7400 W |
