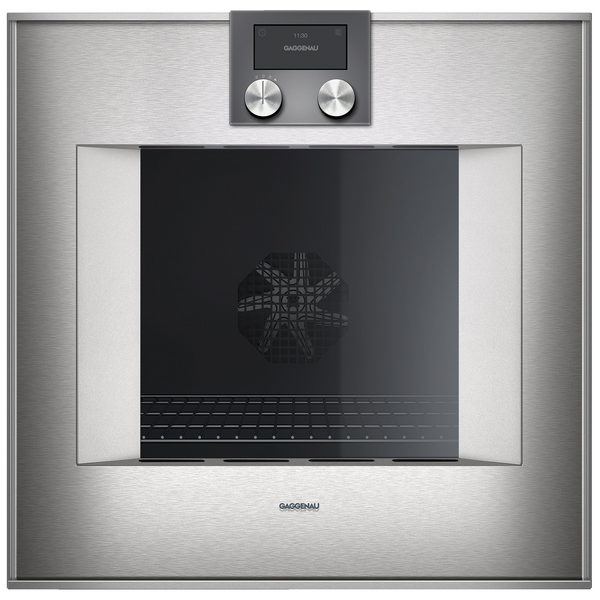

Gaggenau 60cm 400 Series Pyrolytic Built-In Oven BO471111

SKU: BO471111

Unfortunately, this product is no longer available.

If you need more information, please contact one of our product experts.

Specifications & Manuals
Similar products

Specifications & Manuals

SPECIFICATIONS
DIMENSIONS
Key Specifications
Model Number
BO471111
Weight (kg)
62.19 kg
Depth (mm)
547 mm
Height (mm)
595 mm
Width (mm)
590 mm
Finish Colour
Stainless Steel
Oven Fuel Type
Electric
Safety Features
Quadruple glazed door
Child lock
Safety switch off
Warranty
Manufacturer Warranty
2 Years
Other Features
Features

Features

  • Core temperature probe with automatic shut-off.
  • Rotisserie spit.
  • Baking stone socket.
  • Actual temperature display.
  • Rapid heating.
  • Timer functions: cooking time, cooking time end, timer, stopwatch, long-term timer.
  • 60 W halogen light on the top.
  • 2 x 10 W halogen light on the side.
  • Enamelled side shelf supports with 4 tray levels, pyrolysis-safe.

Heating methods

  • Hot air.
  • Eco hot air.
  • Top + bottom heat.
  • Top + 1/3 bottom heat.
  • Top heat.
  • 1/3 top + bottom heat.
  • Bottom heat.
  • Hot air + bottom heat.
  • Hot air + 1/3 bottom heat.
  • Full surface grill + circulated air.
  • Full surface grill.
  • Compact grill.
  • Baking stone function.
  • Roaster function.
  • Dough proofing.
  • Defrosting.
  • Keeping warm.

Handling

  • Automatic door opening.
  • Rotary knob and TFT touch display operation.
  • Clear text display.
  • Option to save individual recipes (incl. core temperature probe).
  • Information key with use indicators.
  • Side-opening door opens up to 180° angle.

Safety

  • Thermally insulated door with quadruple glazing.
  • Child lock.
  • Safety shut-off.
  • Cooled housing with temperature protection.

Cleaning

  • Pyrolytic system.
  • Gaggenau enamel.
  • Heated catalyser to clean the oven air.

Planning notes

  • Door hinge not reversible.
  • The door panel surface of the appliance extends 47 mm from the furniture cavity.
  • If the handle (optional accessory) is retrofitted, the outer edge of the door handle extends 94 mm from the furniture cavity.
  • Consider the overhang, incl. the door handle where applicable, when planning to open drawers next to the appliance.
  • When planning a corner solution, pay attention to the 90° door opening angle.
  • To achieve the 550 mm installation depth, the connection cable needs to follow the slanted edge on the lower right hand corner of the housing.
  • The mains socket needs to be planned outside of the built-in niche.
Control type
Control knobs
Internal oven light
Fast heat-up
Pyrolytic self cleaning
Oven Type
Single Oven
Functions
Number of Functions
17
Dough proving
Bottom heating
Full grill
Top and bottom heating
Defrost
Keep warm
Roast
Hot air eco
Hot air
Hot air and bottom element
Top heating
Volume
Oven Volume
76 L
Electrical Connection
Maximum current rating
16 A
Other
Primary Product Category
Ovens
Volume - One Compartment (Net)
76
Steam Ovens
Combination Microwave Ovens
Combination Steam Ovens
Manuals & Downloads
BO471111 - - Installation Guide
BO471111 - - Specifications Sheet
BO471111 - - User Manual
