Mandatory installation kit for fully and partly ducted recirculation configurations. Recommended for recirculation extraction against an external wall.
This kit includes:
- 4 high-performance cleanAir odour filters with optimised odour reduction performance for cooking applications with complex odour molecules (e.g. fish). Large scale filter surfaces with high odour reduction capabilities and a lifetime of 360 hours of
cooking (nonregenerative). Filters are additionally optimised for low-noise with optimised psycho-acoustics.

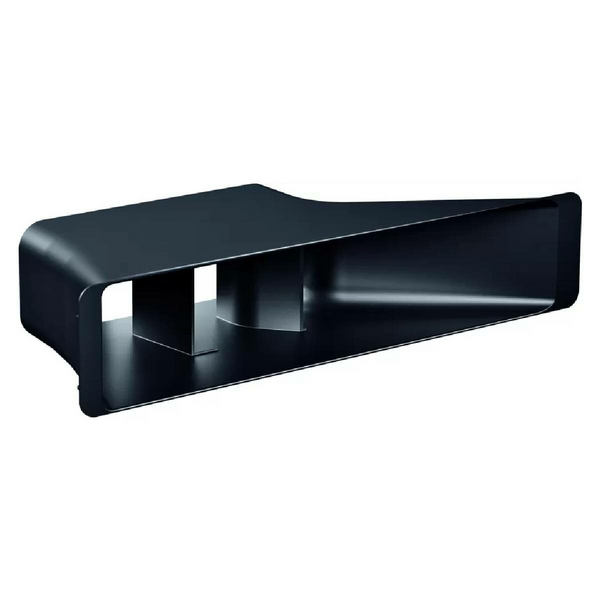

- A diffusor element that can be directly connected to the flat duct elements and that spreads the outflowing air in the plinth area for partly ducted recirculation configurations. The diffusor can also be directly connected to air outlet element with an adhesive tape for fully ducted recirculation configurations.
- Adhesive tape to ensure a direct connection between the diffusor and the air outlet element such as lamella grids or outlet grids coming from the kitchen furniture manufacturers.
- A sealing gasquet that can be attached onto a male flat duct before inserting the element into the appliance to ensure air tightness (The air outlet on the backside of the appliance can directly be accessed with a male flat duct element (DN 150)). The elements enable highly flexible and customized ducted plannings – all further necessary flat ducting elements (DN 150) must be ordered additionally. A return-flow aperture of =400cm² is to be respected in the plinth area.
This kit includes:
- 4 high-performance cleanAir odour filters with optimised odour reduction performance for cooking applications with complex odour molecules (e.g. fish). Large scale filter surfaces with high odour reduction capabilities and a lifetime of 360 hours of
cooking (nonregenerative). Filters are additionally optimised for low-noise with optimised psycho-acoustics.
- A diffusor element that can be directly connected to the flat duct elements and that spreads the outflowing air in the plinth area for partly ducted recirculation configurations. The diffusor can also be directly connected to air outlet element with an adhesive tape for fully ducted recirculation configurations.
- Adhesive tape to ensure a direct connection between the diffusor and the air outlet element such as lamella grids or outlet grids coming from the kitchen furniture manufacturers.
- A sealing gasquet that can be attached onto a male flat duct before inserting the element into the appliance to ensure air tightness (The air outlet on the backside of the appliance can directly be accessed with a male flat duct element (DN 150)). The elements enable highly flexible and customized ducted plannings – all further necessary flat ducting elements (DN 150) must be ordered additionally. A return-flow aperture of =400cm² is to be respected in the plinth area.
Specifications & Manuals
Key Specifications
| Model Number | HEZ9VRPD0 |
|---|---|
| Weight (kg) | 1 kg |
| Depth (mm) | 160 mm |
| Height (mm) | 92 mm |
| Width (mm) | 432 mm |
| Finish Colour | Black |
Warranty
| Manufacturer Warranty | - |
|---|
Other
| Small Appliance - Kitchen Accessories | |
|---|---|
| EAN | 4242005225774 |
