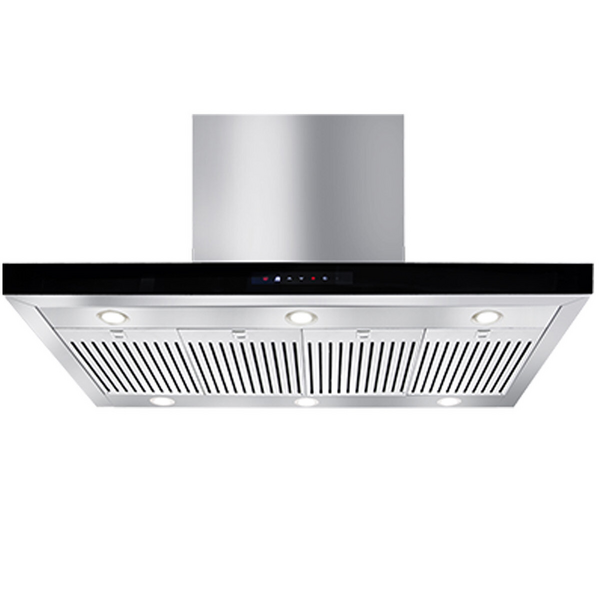

Driven by dual 198 watt full-sealed copper motors, the Wall Mounted BBQ Rangehood can extract 2000 m3 of air per hour, trapping airborne grease and oil within two baffle filters. And with a noise rating of 72 decibels, this rangehood won’t drown out other ambient sounds while in use.
Powerful air extraction
Extracting a large volume of air each hour, this rangehood will keep your cooking area free of smoke and steam.
Well-lit Cooking Area
To help improve the usability of your cooktop’s working space, the rangehood features LED lights for keeping your cooking area illuminated.
Baffle Filters
Constructed from stainless steel, the baffle filters are designed to separate grease from cooking vapours. The grease-laden air is forced to rapidly change direction, leaving the air to escape through the ducting while the grease is trapped in the filter.
Twin Motor
Experience the power of twin 198W full sealed copper motors, delivering exceptional performance and durability. These motors ensure efficient ventilation and maintain a consistently fresh atmosphere in your space.
Specifications & Manuals
| Rangehood Type | Canopy |
|---|---|
| Model Number | ACH12BBQB |
| Weight (kg) | 38 kg |
| Depth (mm) | 700 mm |
| Height (mm) | 580 mm |
| Width (mm) | 1200 mm |
| Accessories included | 1 x Remote control, 2 x Stainless Steel Flue Covers 500mm each. |
| Finish Colour | Stainless Steel |
| Notes | Minimum installation height above BBQ module: 1200mm |
| Finish Colour Description | Stainless steel with black glass fascia |
| Manufacturer Warranty | 2 Years |
|---|---|
| Use | Not intended or designed for commercial use. |
| Max Air Capacity | 2000 m³/h |
|---|---|
| Number of fan speeds | 3 |
| Ducting size | 200 |
| Can be recirculated | |
| Ducting location | Top |
| Features | Control Panel Type: Touch Control Operation. Display: LCD Display. Speeds: 3 Speeds. Lighting: 6 x LED Cooking Lights will perfectly illuminate your cooking area. Installation Type: Wall Mount Installation. Motors: Twin Motors. Air Movement: 2000 m3/h Air Flow. Optional Ducting: Yes Optional extra 200mm ducting is available to add to your order Online. |
|---|---|
| Super fast air extraction | |
| Programmable timer | |
| Control type | Touch controls |
| Light type | LED |
| Motor Type | Twin |
| Boost function | |
| Clean filter indicator |
| Type of connection | 10A plug & lead |
|---|---|
| Length of cord | 1.7 m |
| Filter material | Baffle |
|---|---|
| Number of filters | 4 |
| Dishwasher safe filters |
| Noise when working | 72 dB |
|---|
| Primary Product Category | Rangehood |
|---|---|
| Stainless Steel Grade | 304 |
| EAN | 9347777002860 |
